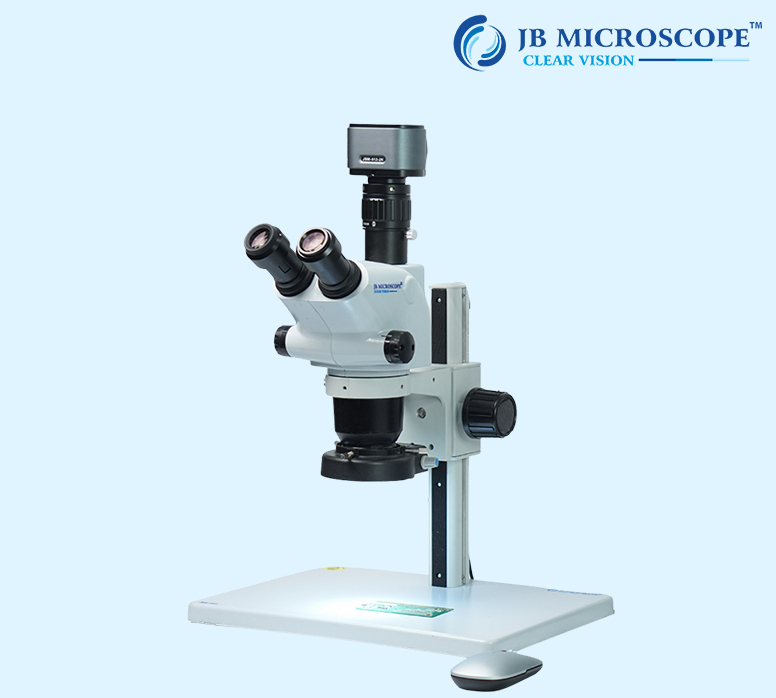

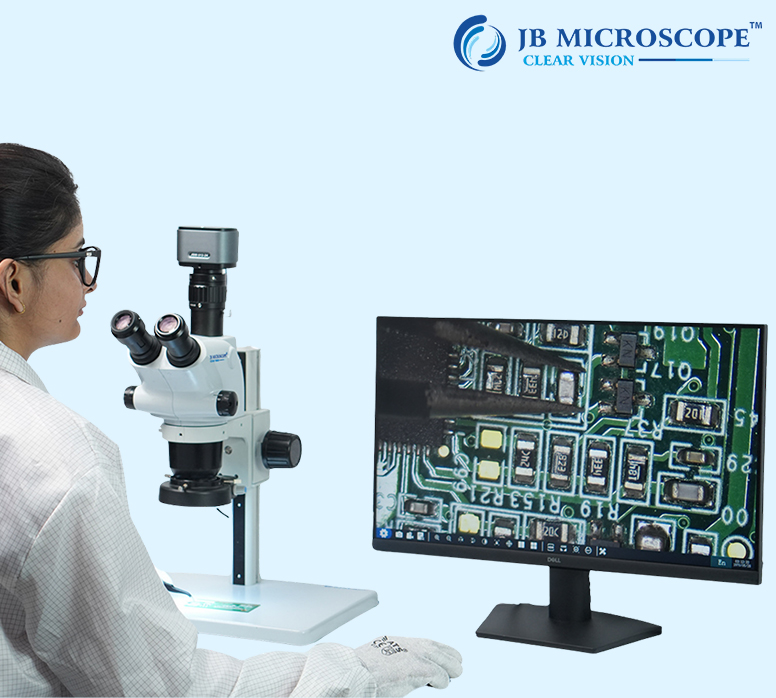

Stereo zoom microscopes allow quick zoom from low to high magnification. Using a stereo zoom microscope makes it simple to view a sample in the entire field of view, then focus and zoom in on a particular part of interest.
Stereo zoom microscopes allow quick zoom from low to high magnification. Using a stereo zoom microscope makes it simple to view a sample in the entire field of view, then focus and zoom in on a particular part of interest.
| Technical Specifications | Value |
|---|---|
| Brand Name | JB MICROSCOPE |
| MODEL | JBM-765T |
| Trinocular Head | 45° inclined 360° rotate |
| Interpupillary Distance Adjustment | 54-76mm |
| Diopter Adjustment | ±5dp |
| Eyepiece | WF10X/22mm |
| Objective | 0.65X - 6.5X |
| Magnification Ratio | 1:10 |
| Magnification | 0.65X - 65X |
| Working Distance | 110mm |
| C-mount Adapter | 1x |
| Vertical Post Height | 240mm |
| Vertical Post Diameter | φ32mm |
| Microscope Body Holder | φ76mm |
| Focus Travel | 50mm |
| Stage Plate | φ95mm black white contrast plate |
| Base | 274 x 207 x 23mm |
| Material | Metal |
