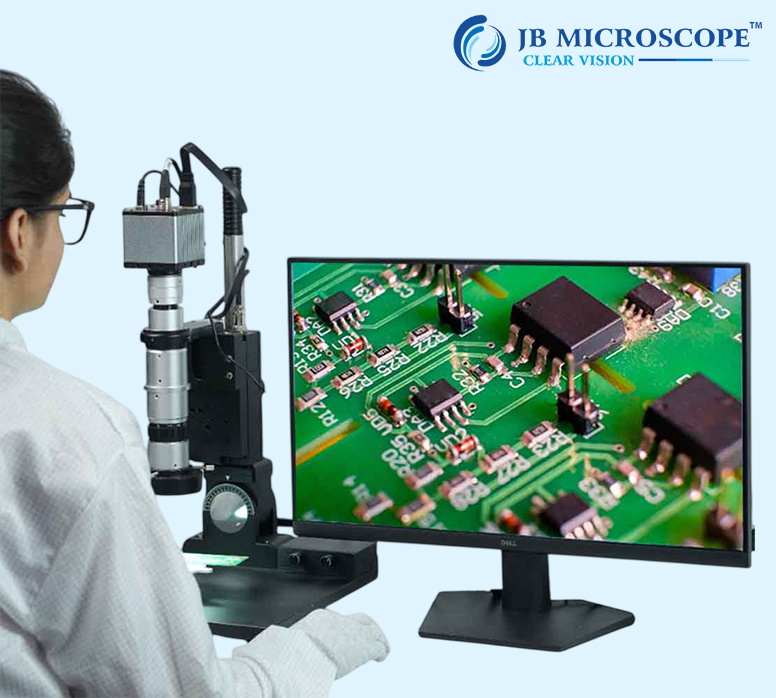

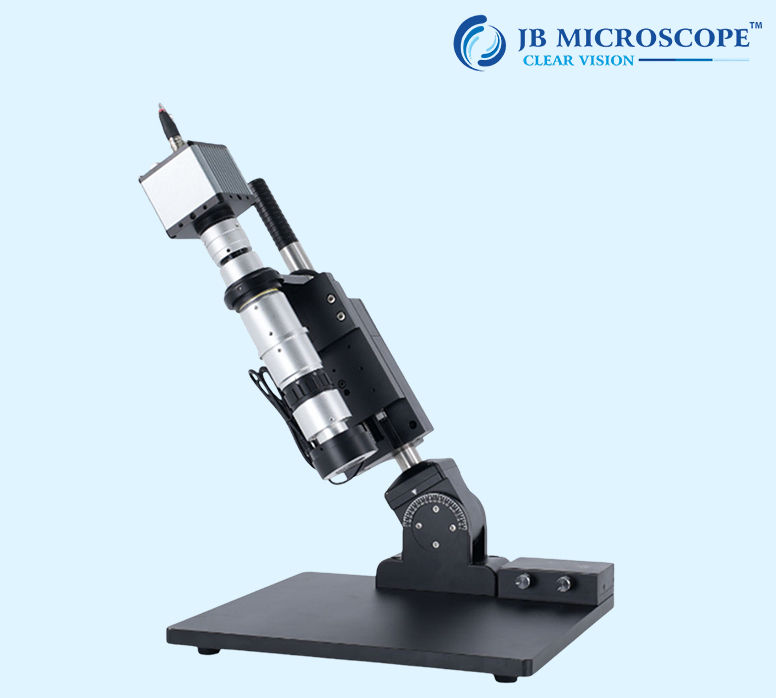

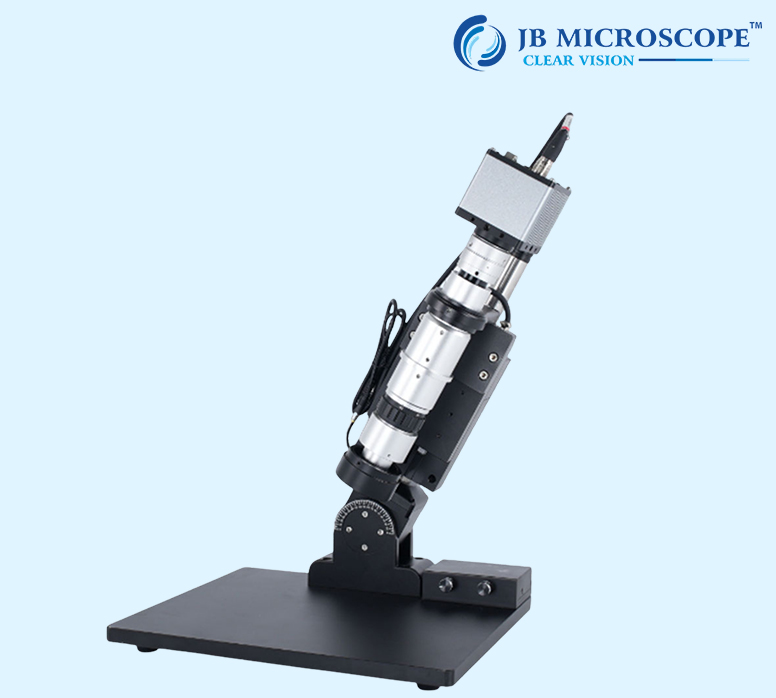

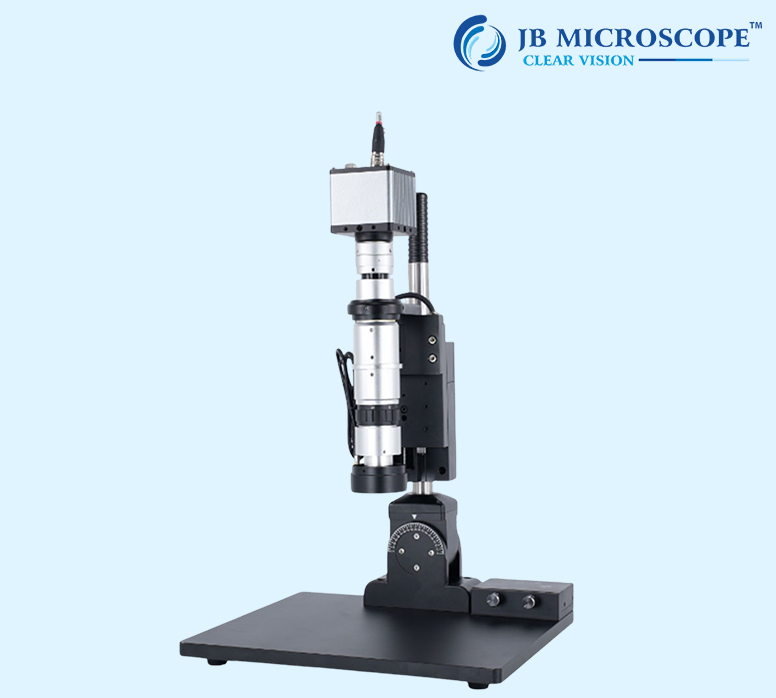

Height Measurement Digital Microscope JBM‑HM1000

Capable of measuring height in microns! High accuracy achieved through ultra-high magnification.

• Comes with an indicator for measuring height.
• Ultra-high magnification of up to 230x.
• Minimizes chromatic aberration.
• Sharper edges
• Japan's top zoom ratio of 12.
• Adopts a global shutter to prevent screen shaking at ultra-high magnification ranges.
• Coaxial lighting type.
• Comes standard with simple measurement software that can measure the distance between two points.

• Comes with an indicator for measuring height in microns with ultra-high accuracy
• Ultra-high magnification of up to 230x (converted to apply to 17-inch monitors)
• Minimizes chromatic aberration with sharp optical edge definition
• Top zoom ratio of 12
• Global shutter sensor preventing screen shaking at ultra-high magnification ranges
• Coaxial lighting type for reflective and metal surface clarity
• Standard measurement software that measures distance between two points
• Optional software support: Edge automatic fit function, Pin-point digital zoom, Focus stacking, and GS-4S0 calibration tool (20µm / 100µm / 500µm / 1mm increments)

• Distance between two points, Distance between parallel lines, Distance between horizontal parallel lines, Distance between vertical parallel lines
• Vertical distance, Distance between circle centers, Point coordinates
• Angle from 3 points, Angle from 4 points, Diameter of circle defined by 3 points, Diameter of approximate circle
• Rectangle, Ellipse, Approximate straight line, Arc defined by 3 points
